ICU Hospital Therapy Ventilator

Customization: Available
Type: Ventilator
Used for: Adult, Child, Infant

Description
Inquiry

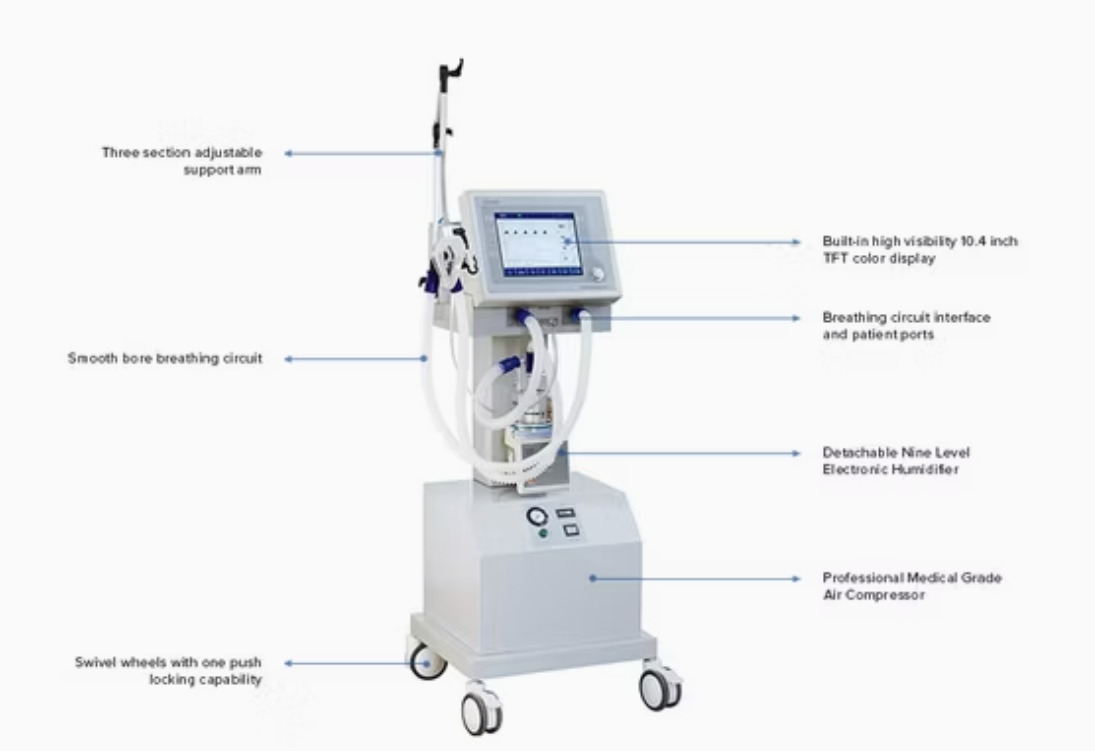

ICU Ventilator (CWH-3010):
Applied for adult and child
with high-intelligent control system
with TFT display for ventilation parameters
Humidifier with temperature adjustment
Flow (optional) and pressure trigger
with air compressor (optional)

Main specifications:
Good Ventilator
Power: 220V AC ± 10%, 50 to 60Hz ± 2%, built-in battery for backup
Gas source: O² , air
Ventilation mode: IPPV, SIMV, SIGH, SPONT, CPAP, PEEP, S, T, S/T and manual (optional: Bi-level)
Parameter monitoring: Tidal volume, minute volume, frequency, inhaling time, airway pressure, PEEP and O² Concentration
Waveform display: Pressure-time (optional: Flowtime, pressure-volume loop)
Alarm: No tidal volume, minute volume too high (low), airway pressure too high (low), O² Concentration too high (low), O² Or air failure, AC power failure and backup battery too low.

ICU Hospital Therapy Ventilator (CWH-3010)

Model:	CWH-3010
Applied for:	adult and child
system	with high-intelligent control system
display	with TFT display for ventilation parameters
adjustment	Humidifier with temperature adjustment
Power:	220V AC ± 10%, 50 to 60Hz ± 2%, built-in battery for backup
Gas source:	O² , air
Ventilation mode:	IPPV, SIMV, SIGH, SPONT, CPAP, PEEP, S, T, S/T and manual (optional: Bi-level)
Parameter monitoring:	Tidal volume, minute volume, frequency, inhaling time, airway pressure, PEEP and O² Concentration
Waveform display:	Pressure-time (optional: Flowtime, pressure-volume loop)
